Price for Union Butterfield 1599(M) High-Speed Steel Straight Flute Tap, For Cast Iron, Nitride Finish, Round Shank With Square End, Plug Chamfer, M12-1.75 Thread Size With Special Pomotions & eligible for FREE Super Saver Shipping
Product Feature
- Hand threading tap with straight flutes cuts threads in through holes and blind holes
- Nitride finish for increased hardness and wear-resistance, suitable for abrasive materials such as cast iron
- Produces ANSI standard right-hand threads in metric sizes
- High-speed steel is compatible with a variety of materials
- Round shank with square end allows tap to be used in hand or power-driven applications
Product Description

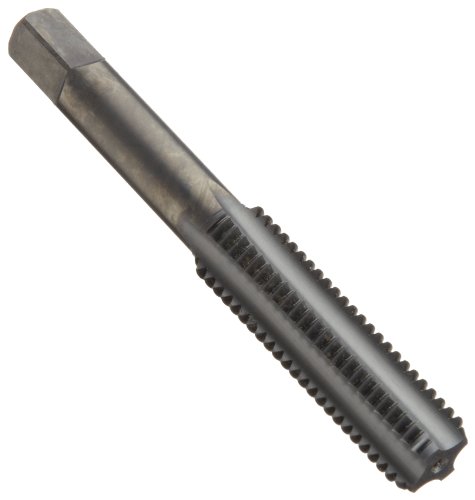

The Union Butterfield 1599(M) nitride high-speed steel hand threading tap has straight flutes and a round shank with a square end, and is used to create metric right-hand threads in a number of materials, with best performance in cast iron. The straight flutes are suitable for threading through holes (extending through the workpiece) and blind or bottoming holes (with only one opening). Nitride finish offers increased hardness and wear-resistance, and is good for working with abrasive materials such as cast iron.
Right-hand threads are designed to tighten when the head or nut is rotated clockwise (the most common threading direction). High-speed steel (HSS) is a common general-purpose steel for cutting tools and is compatible with a variety of materials. The round shank with square end makes this tap suitable for hand or power-driven applications. This tool can be used in machines, such as drill presses or lathes, or with hand tools such as tap wrenches.
In the Union Butterfield 1599(M) series all taps have four flutes. They are available with a variety of chamfers. This tap conforms to ANSI standards and can create threads to a depth 1 ½ times its diameter. It is suitable for the ANSI 6H tolerance class: 6H is used for a normal length of thread engagement and medium tolerance quality.
Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with hand tools. Common types of taps include hand taps, spiral point taps, spiral flute taps, thread forming taps, and pipe taps. Hand taps (straight-flute taps) collect chips in the straight flutes of the tool; spiral point taps push chips through holes ahead of the tool; and spiral flute taps pull chips back from the tip of the tool, up and out the hole. Thread forming taps, also known as cold forming taps, press rather than cut to create threads in a drilled hole, and no chips are created. Pipe taps create threads in pipes and pipe fittings. Each thread type designates a thread profile and each type is identified with an abbreviation. In the U.S. and Canada, the Unified Thread Standard is the dominant thread type, including UNC (Unified Coarse), UNF (Unified Fine), and NPT (National Pipe Taper) threads, among others.
Precision Dormer manufactures cutting tools under the following brands: Precision Twist, Dormer, and Union Butterfield. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.
